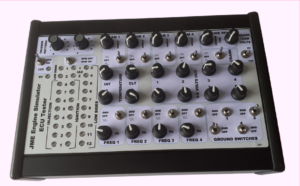

JME Engine Simulator and ECU tester

Description

Bench or track-side ECU testing, for fault-finding and product development.

Features:
Numerous simulated crank/cam patterns selectable by rotary knob.
1 crank and 4 cam outputs. AC or square wave.
VVT angle adjustable on cams.
4 x NTC temperature outputs
8 x 0-5V analog outputs
4 x frequency or ground outputs
4 x ground switch outputs
8 x ECU injector status LEDs
8 x ECU logic ignition status LEDs
2 x ECU high-side status LEDS
10 x ECU low-side status LEDs
2 x H-bridge / stepper status LEDs
26+34 pin superseal 1.0 connector
12V in via barrel plug or screw terminal
Optional pin header for signal scoping.

Also in the box:
Printed manual.
Mating SuperSeal 1.0 plugs and pins for customer to make their own wiring.
Universal 12V mains power supply.

Price includes UK, USA, EU delivery, duties paid.
For other regions, please email sales@enginesim.info for a shipping quote.
